EU heating cable,electric heating film,substrate heater thermostat 16a WIFI temperature controller for remote sensor

8965_01

Item description
This Wi-Fi circular aviation aluminum frame new design heating thermostat , it aims at market demand, it has large LCD display. Easy operation, complete functions .It can be control electric heating film,infrared heater, underfloor heating, heating cable,Electric blanket, heat mat , eelectric heating plate. It is used for floor heating and heating machine.

THERMOSTAT SPECIFICATIONS:
- Sensor: NTC3950,10kΩ
- Accuracy:±0.5℃
- Temperature compensation(calibration): ±9℃ (-2 ℃ default)
- Set Temp. Range: 5 -35℃
- Dispaly Temp. Range: 5 ~ 99℃
- Low temperature protection setting: 0~15℃ (0℃ default)
- High temperature protection setting: 10~70℃ (45℃ default)
- Working environment temperature: -5 ~ 45 ℃
- Difference  Temperature: 1~5℃ (1℃ Default)
- Time: 12/24h switchable (24h default), Timing Error: < 1%
- Shell Material: PC +ABS ( Fireproof)
- Built-in battery: Lithium Cell CR1220 3V
- Protection class: IP20
- Dimension: 9*9*1.4 cm, display=>φ5cm

Applications

-1-2

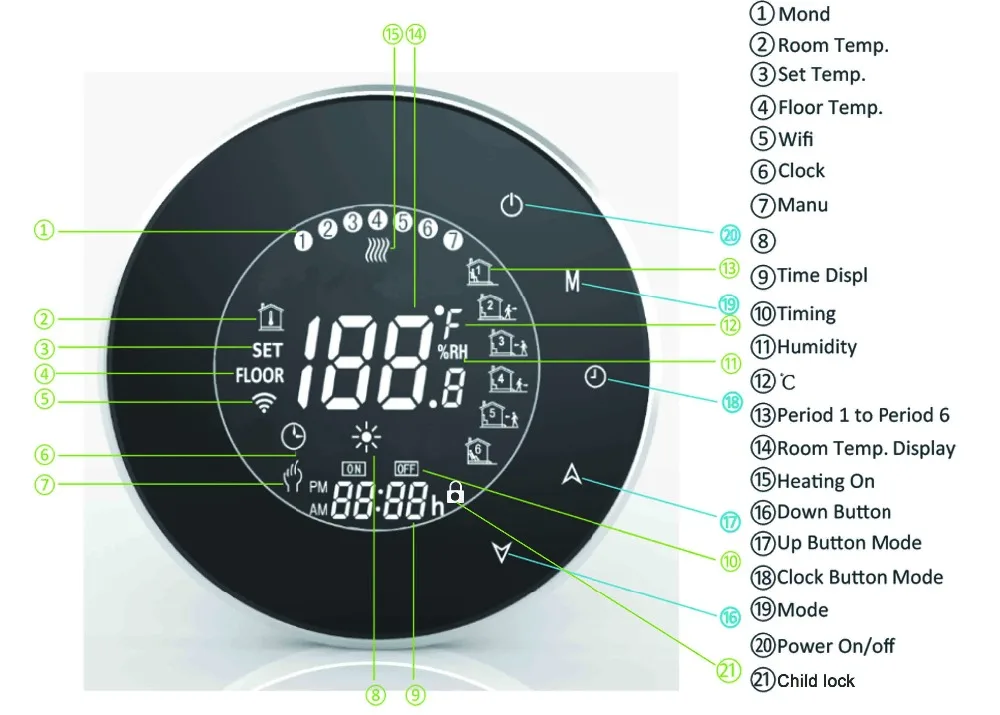

Item display

Wiring diagram

GB
- Negative black screen will bring you to a secret world.
- 51mm round display area helps to protect your eyes.

- Touch buttons to make simple operation.
1-4
- The visiable thickenss above the wall is only 11mm.

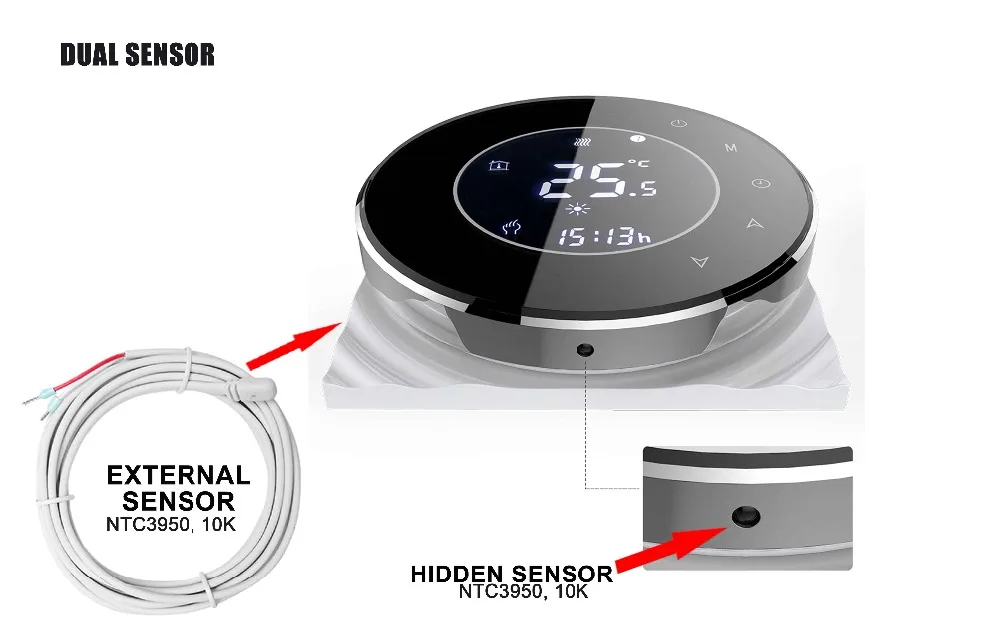

-Hide and external temperature sensor for cable length 2.5M
1-3
- Rotation to connect gives you easy installation.
- 86mm hidden box and european 60mm round box is suitable.
1-2
1-1
- Easy Installation and Convenient Setting: Flush mounting; temperature calibration ±9°C adjustable; hysteresis 0~5°C adjustable; Backlight time 1~60s adjustable; 12/24 hours switchable.


Item Pictures

Project installed

Your thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress box
Step 1. Keep power off. See Fig 1
Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.
Step 3. Connect power supply, load into the appropriate terminals. (see "Wiring your thermostat" for details and Fig 3).
Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.
Step 5. Fasten body of the thermoatat and the mounting plate through rotating. See Fig 5.
Step 6. Installation complete. See Fig 6.



Back button installation demoHTB15VhUdBfM8KJjSZPiq6xdspXaMInstallation tip: For accurate readings, never install a thermostat directly above a baseboard heater, near a refrigerator or other large appliance, or where it will be in direct sunlight.Size description



Packing List
1*  Thermostat(white and black  Optional
2* Mounting screws
1*Screwdriver tool
1* English manual
1* QC passed

6000GA GB GC WIFI and

Mobile phone connection thermostat

WIFI-1 WIFI-2 WIFI-3
Standard and Certificate
Products are designed and manufactured in accordance with GB16915.1-97, GB2099.1-96, GB1002-96: Standards and performance indexes are all up to CE standard.
